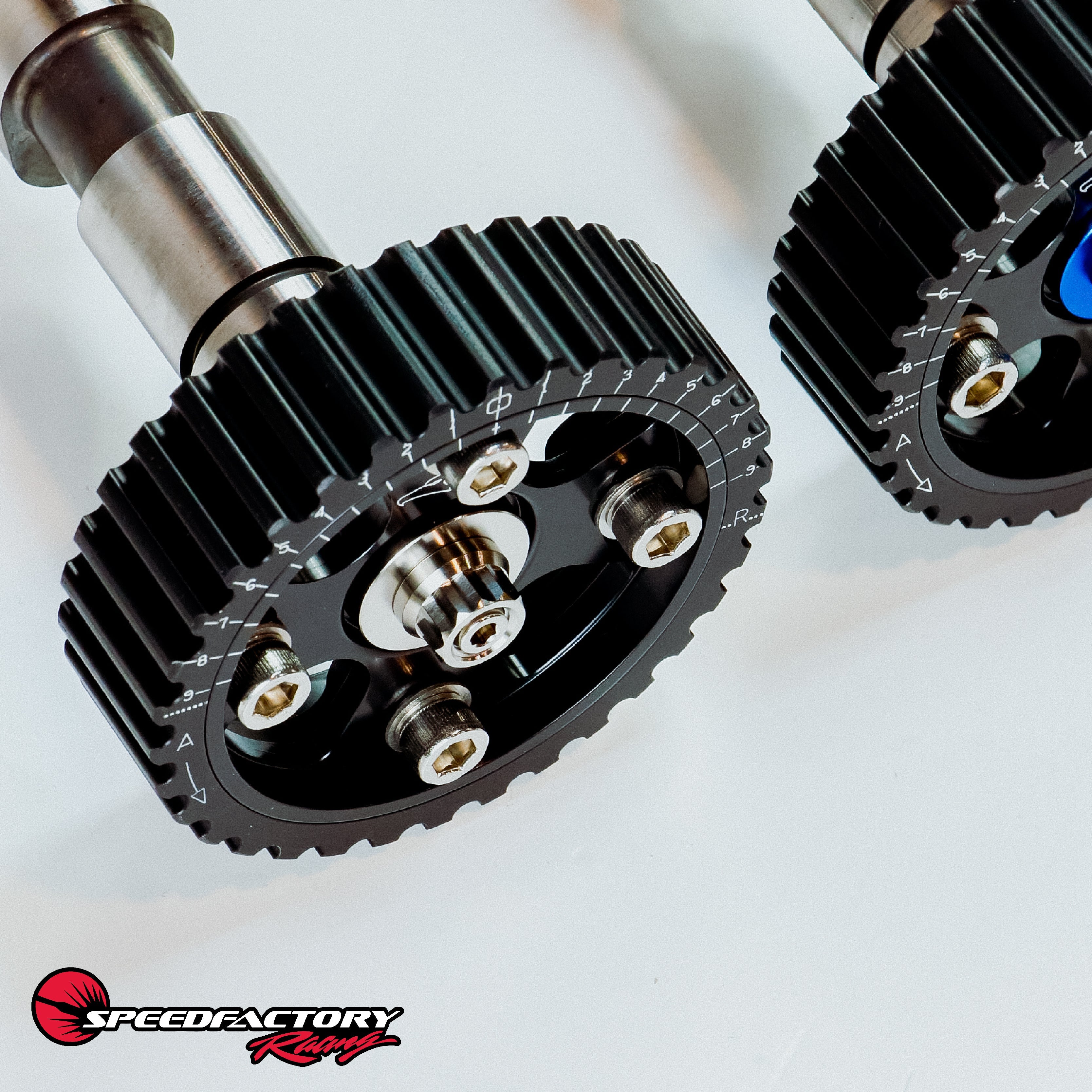

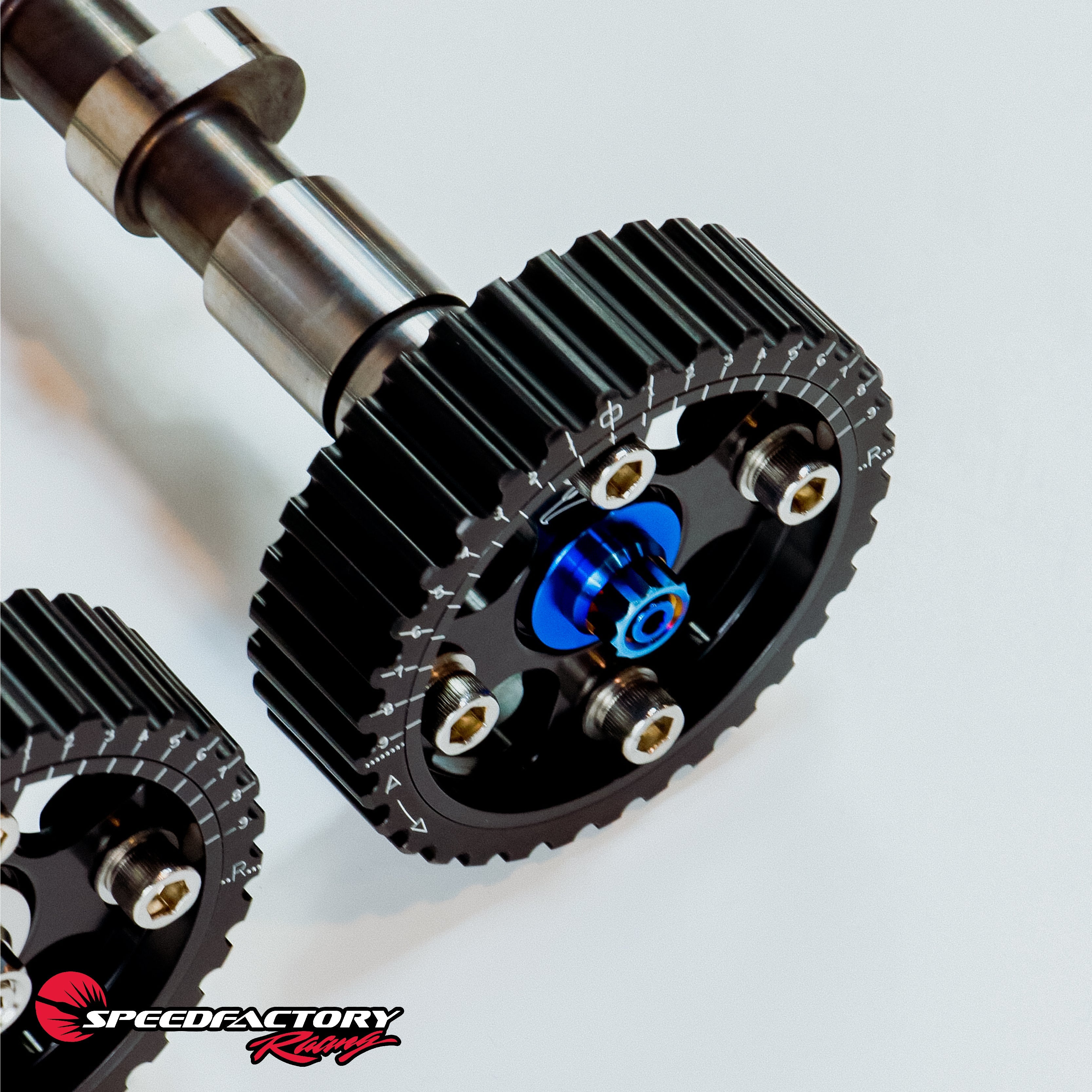

Upgrade your ugly stock cam gear mounting bolts to the SpeedFactory Racing Titanium Cam Gear Stud Kit!
As with all our titanium products, these feature high strength, low weight, and superior corrosion resistance - these will not corrode like your stock steel hardware.

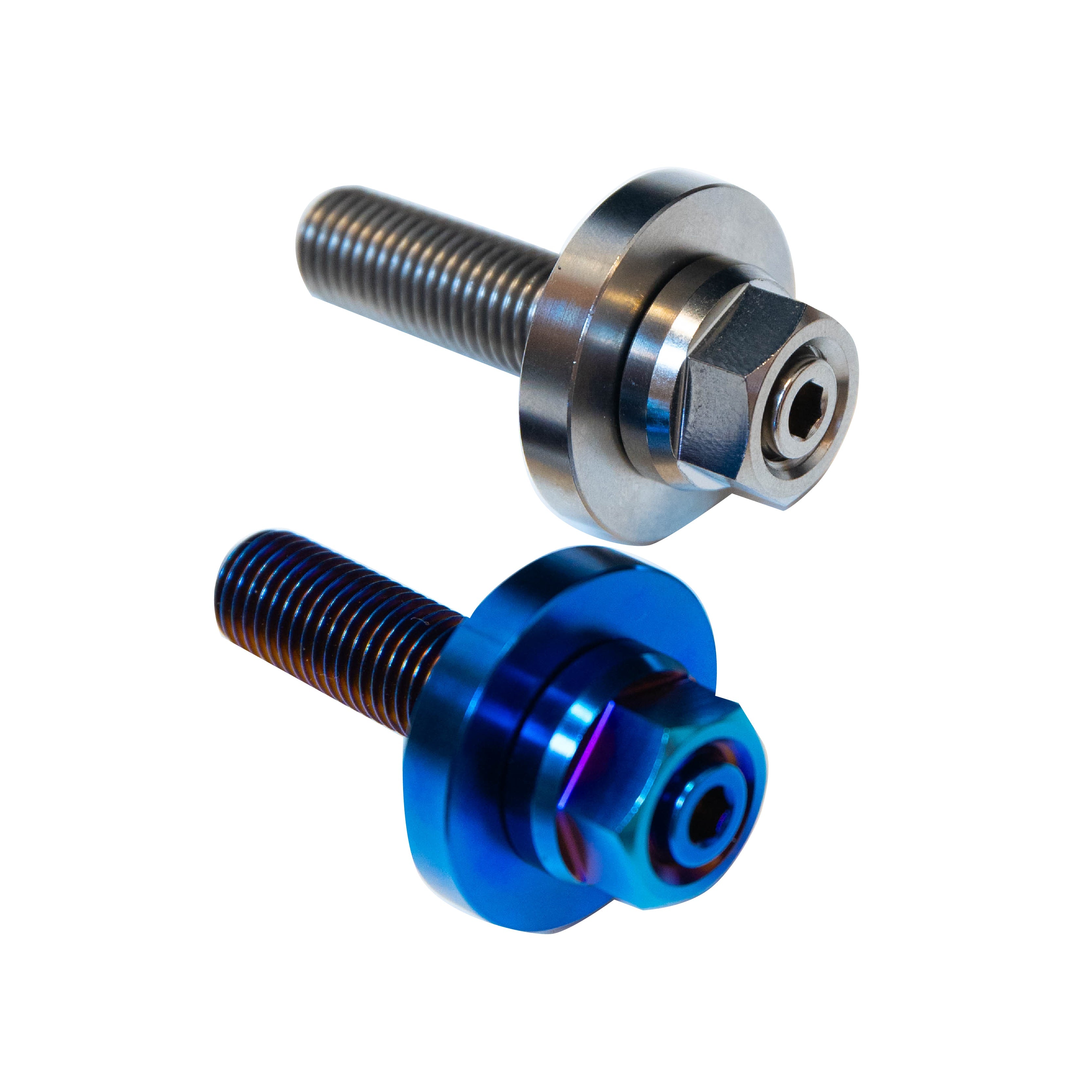

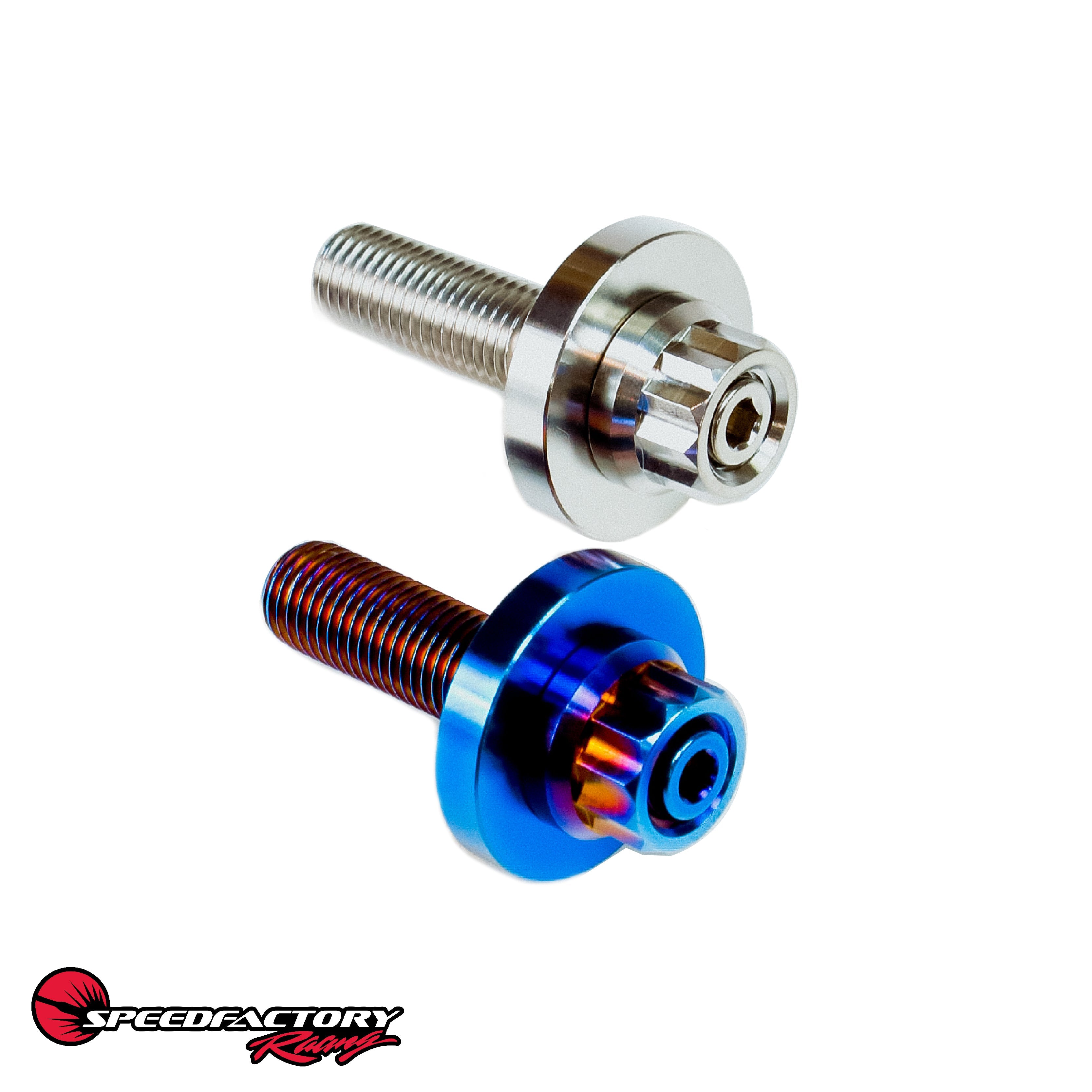

SpeedFactory Racing Titanium Cam Gear Stud Kits are made of high-quality Ti 6Al-4V and incorporate a 4mm hex key tip that allows them to be easily installed using an Allen wrench. Titanium 12-point (13mm head) or 6-Point (14mm head) nuts and flat washers are included.
Our specially designed stud with low profile nipple provides maximum depth of thread engagement inside the camshaft itself, 23% more than the OEM bolt.
This helps prevent cracking of the keyway in the end of the camshaft, and we have successfully been using them in our record setting racecars with camshafts that already had badly cracked keyways and were unusable with the OEM bolt.

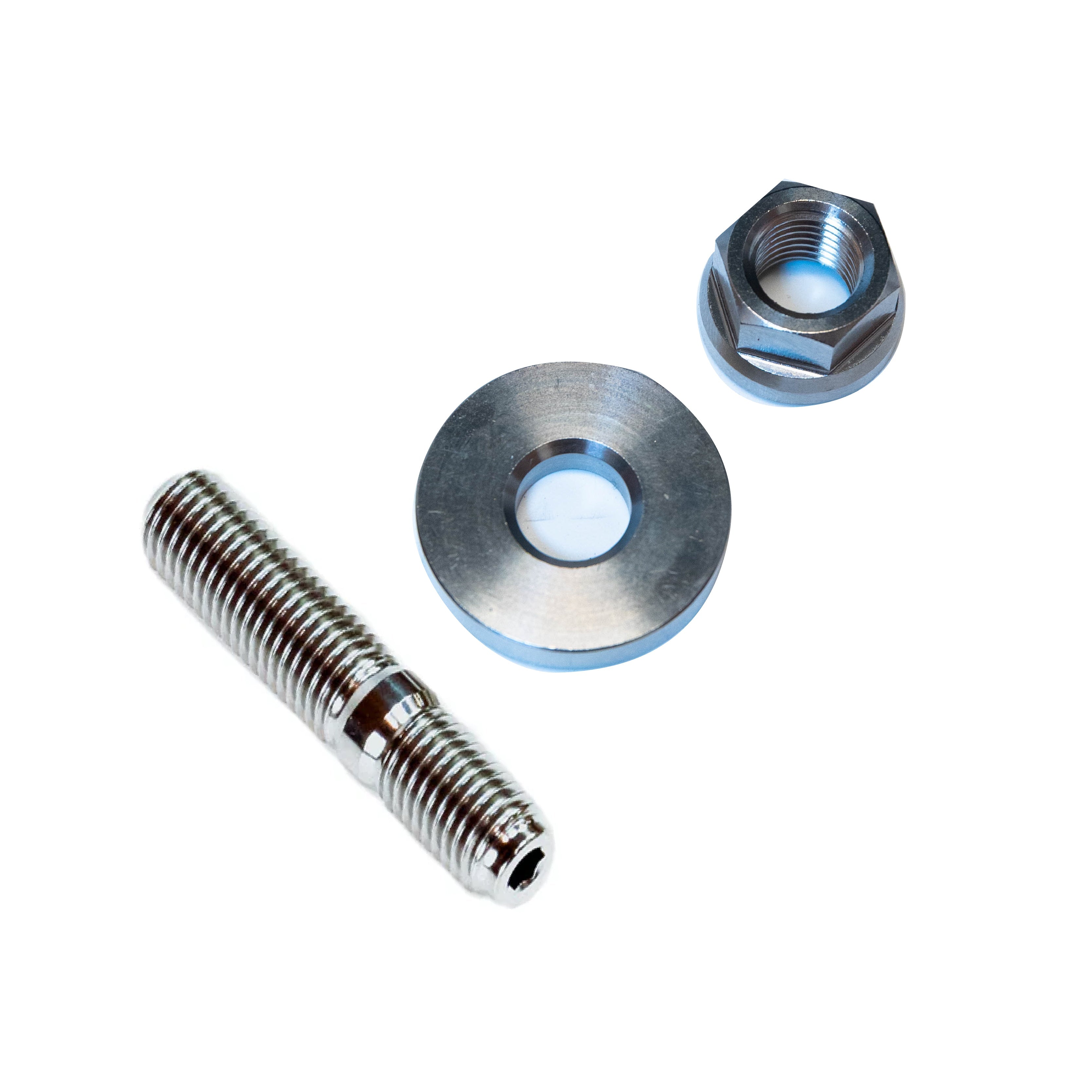

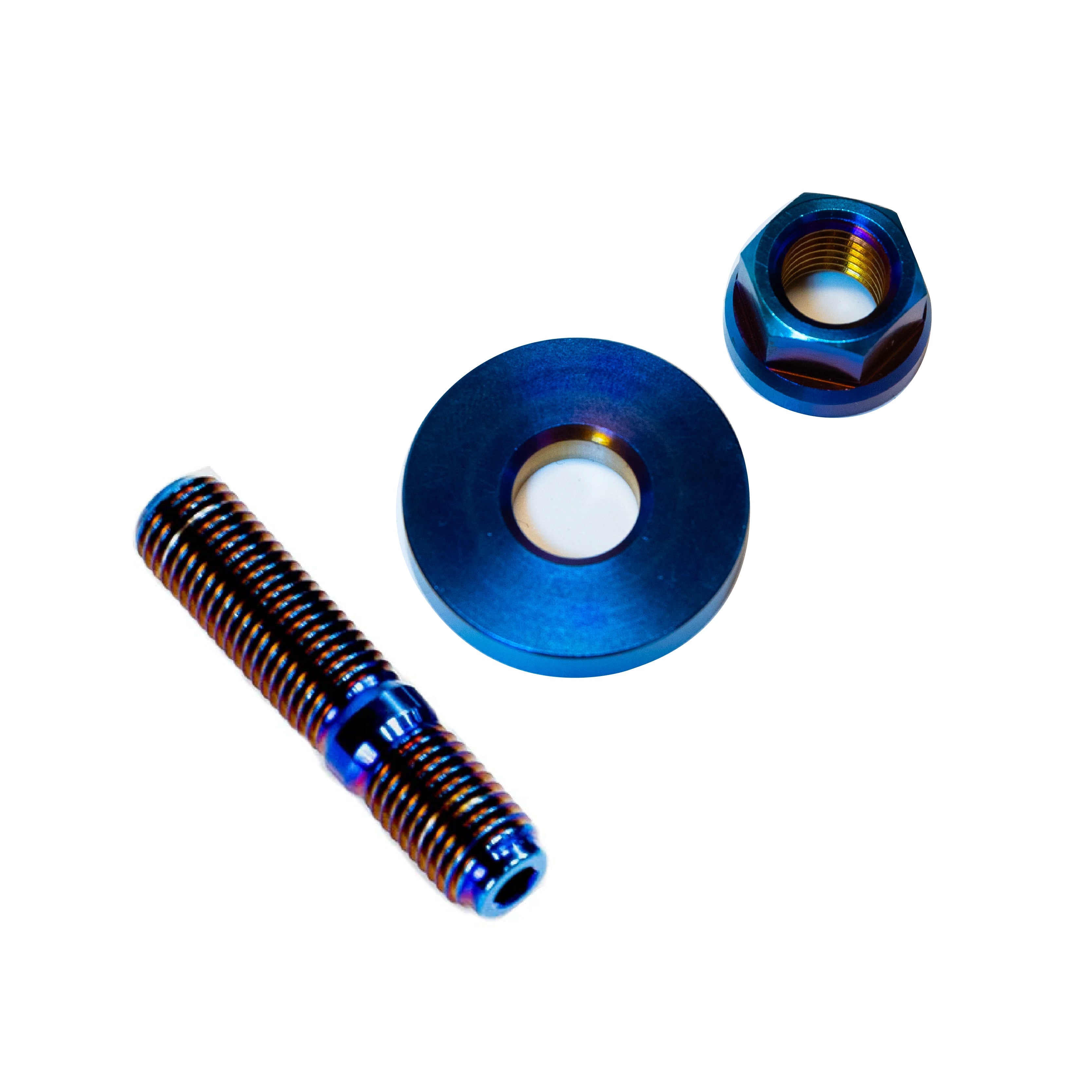

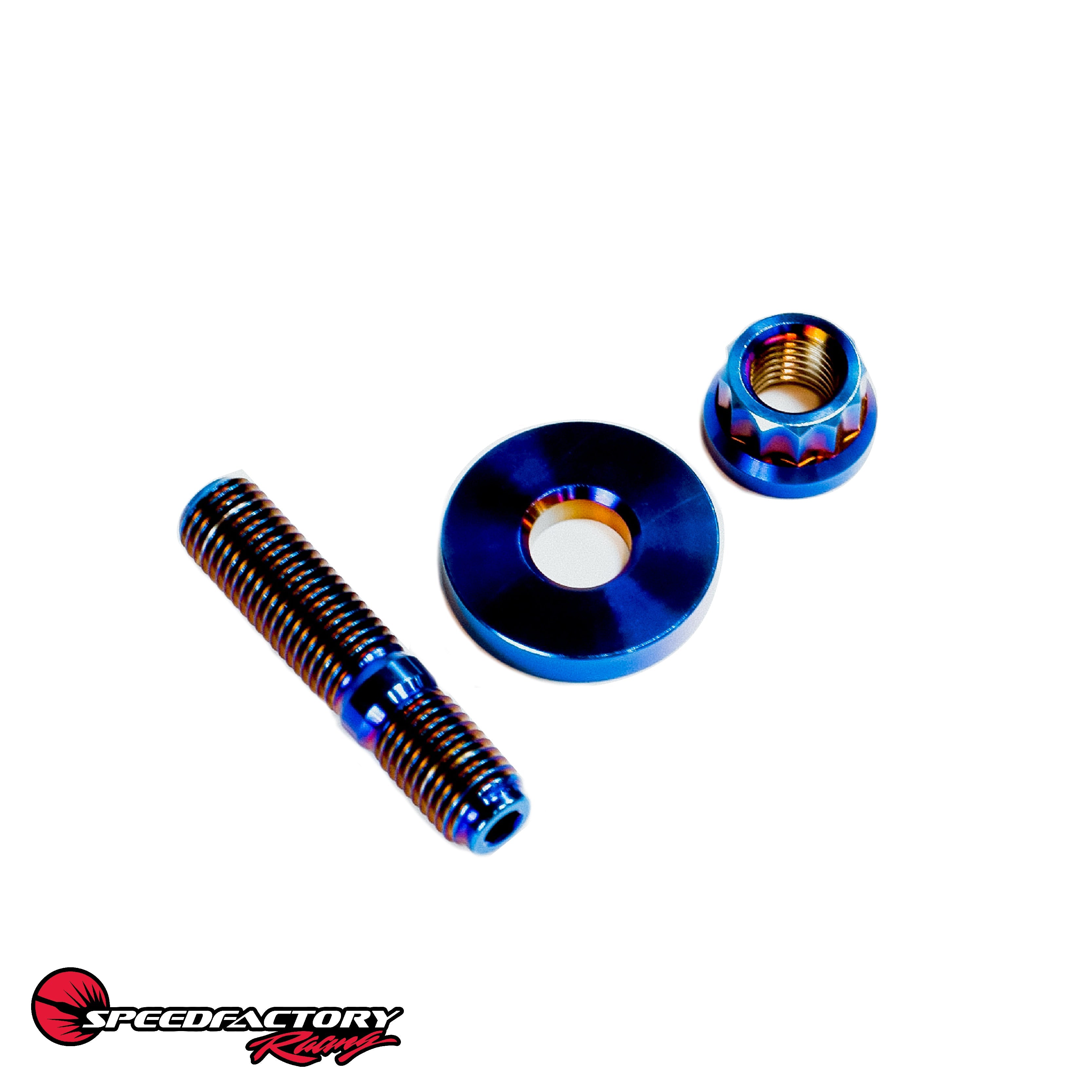

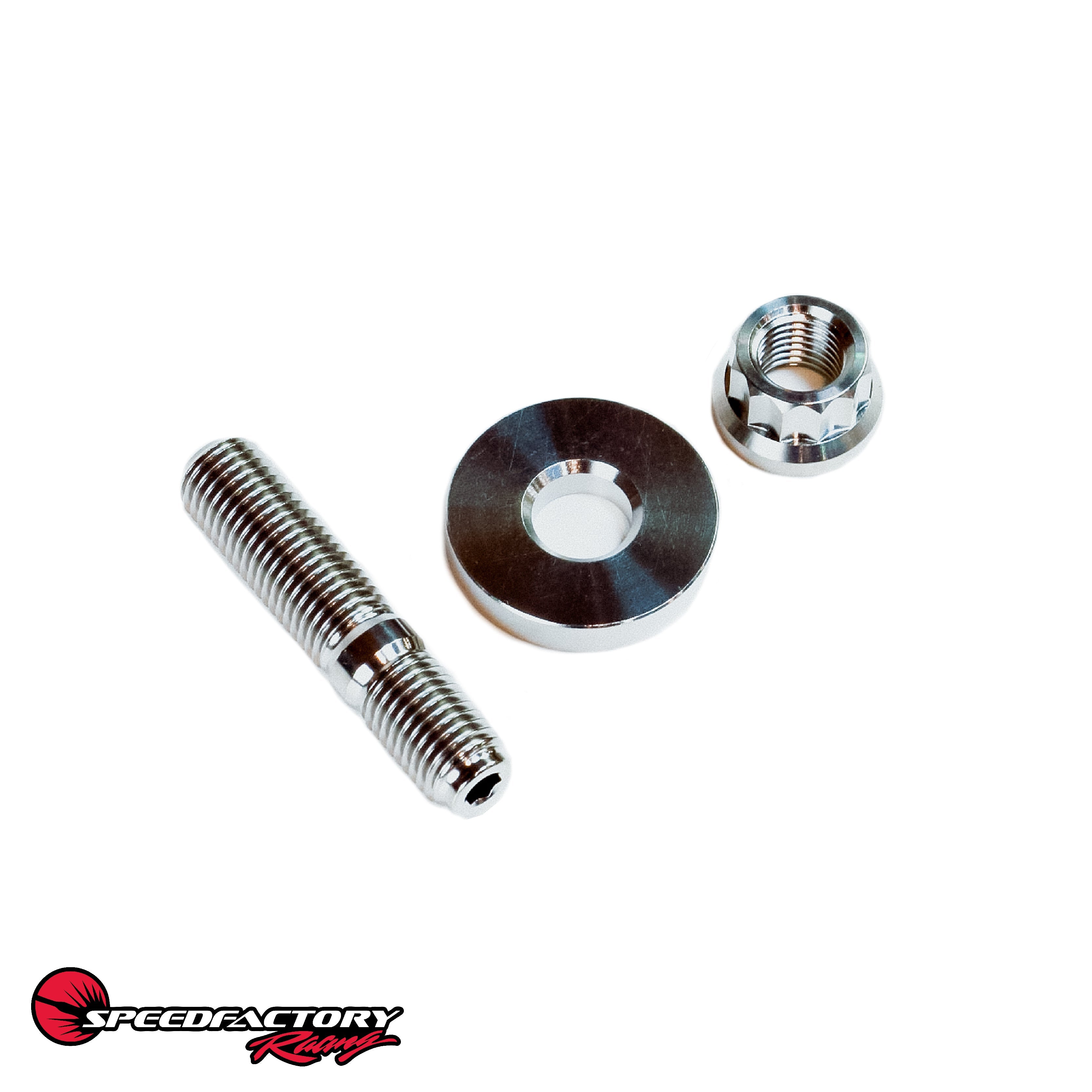

These kits include the following:
(2) M10 x 1.25mm x 48mm Titanium Cam Studs
(2) M10 x 1.25mm 12pt (13mm head) or 6pt (14mm head) Titanium Flange Nuts
(2) M10 x 5mm Titanium Cam Washers
Confirmed Fitments:
B-Series VTEC, H-Series
Recommended Torque Specifications:
Ti Stud into Camshaft: Hand-tight
Ti Nut onto Stud: 40ft-lbs for oem steel cams. Follow cam manufacturers recommendations if using aftermarket chill cast iron cams, typically 23ft-lbs.
