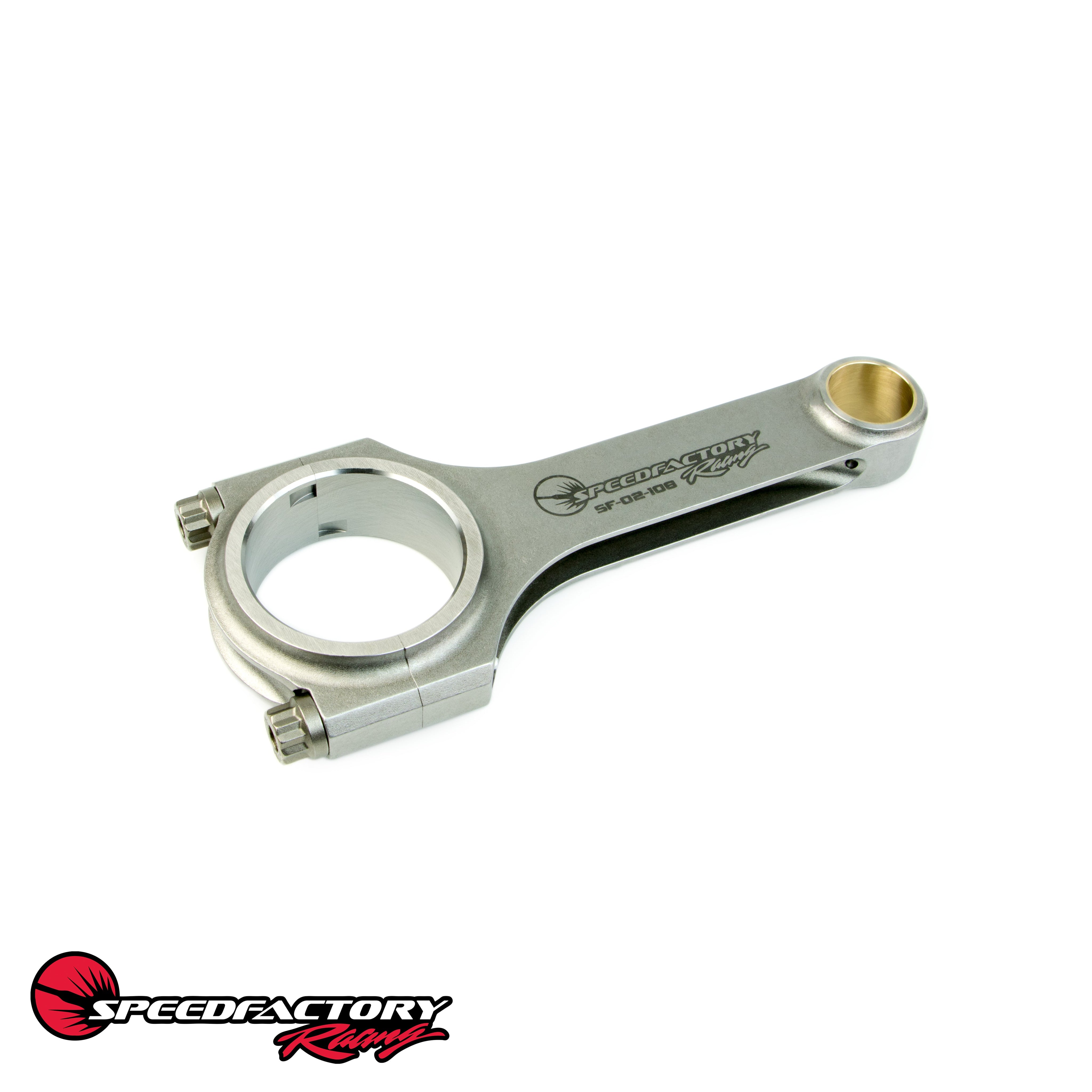

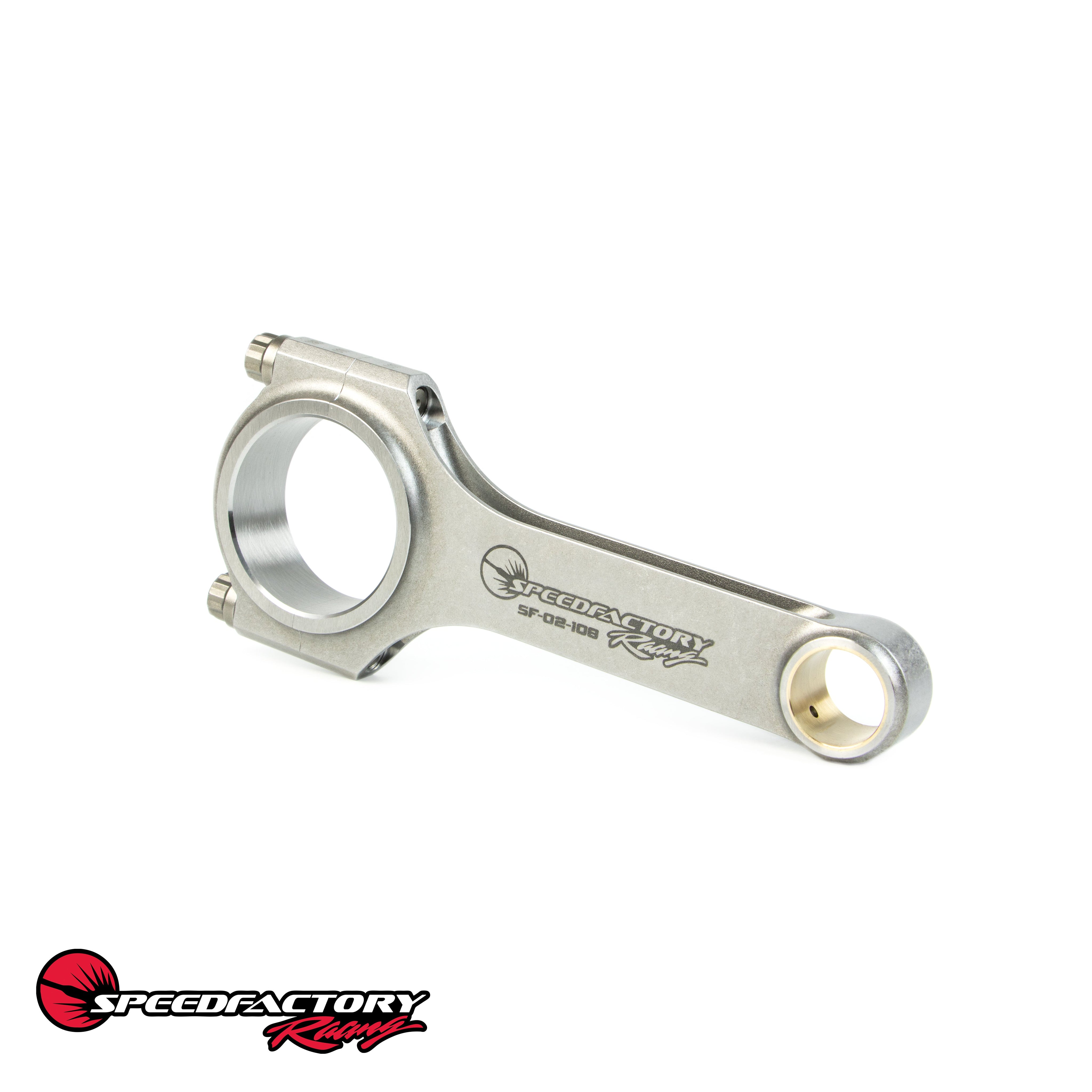

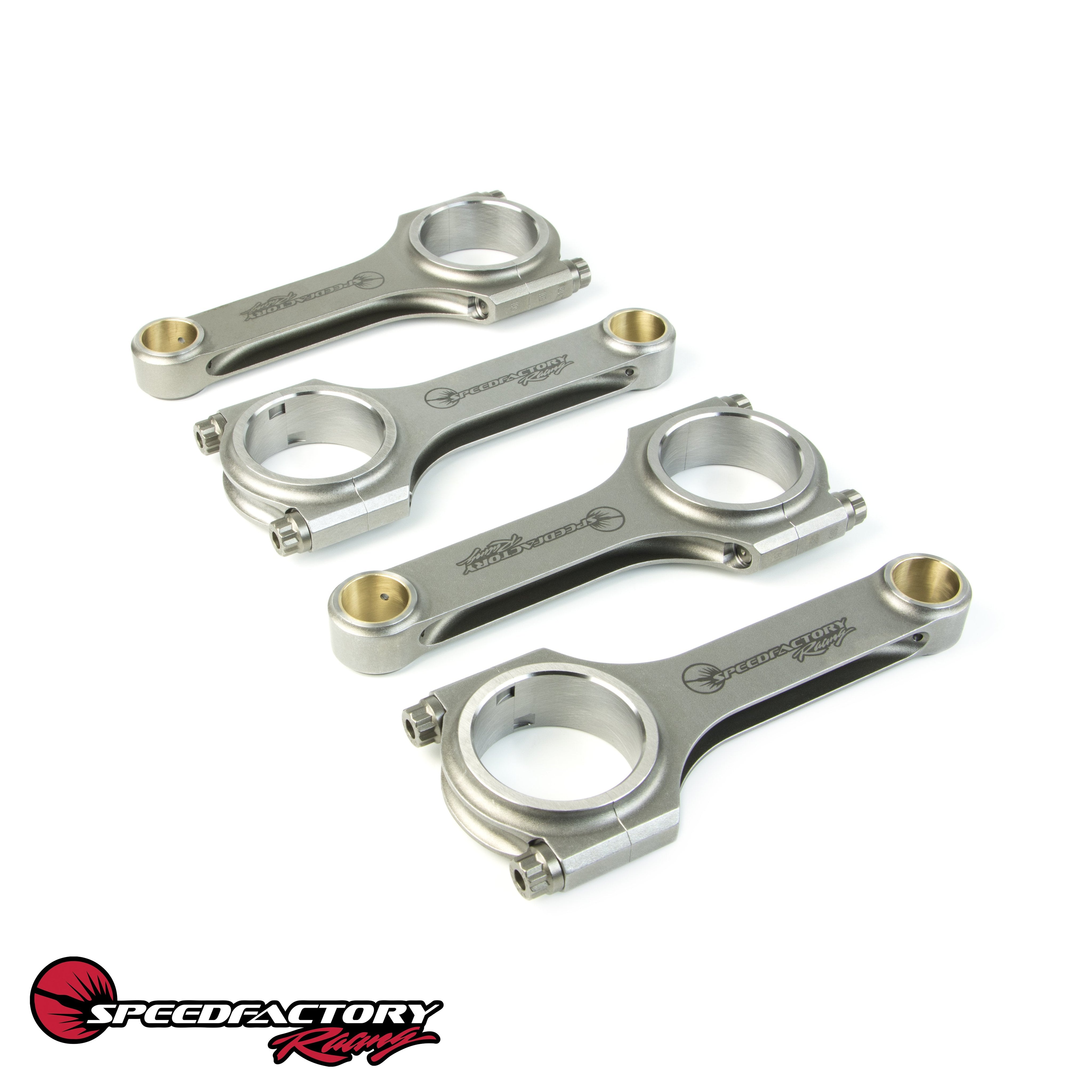

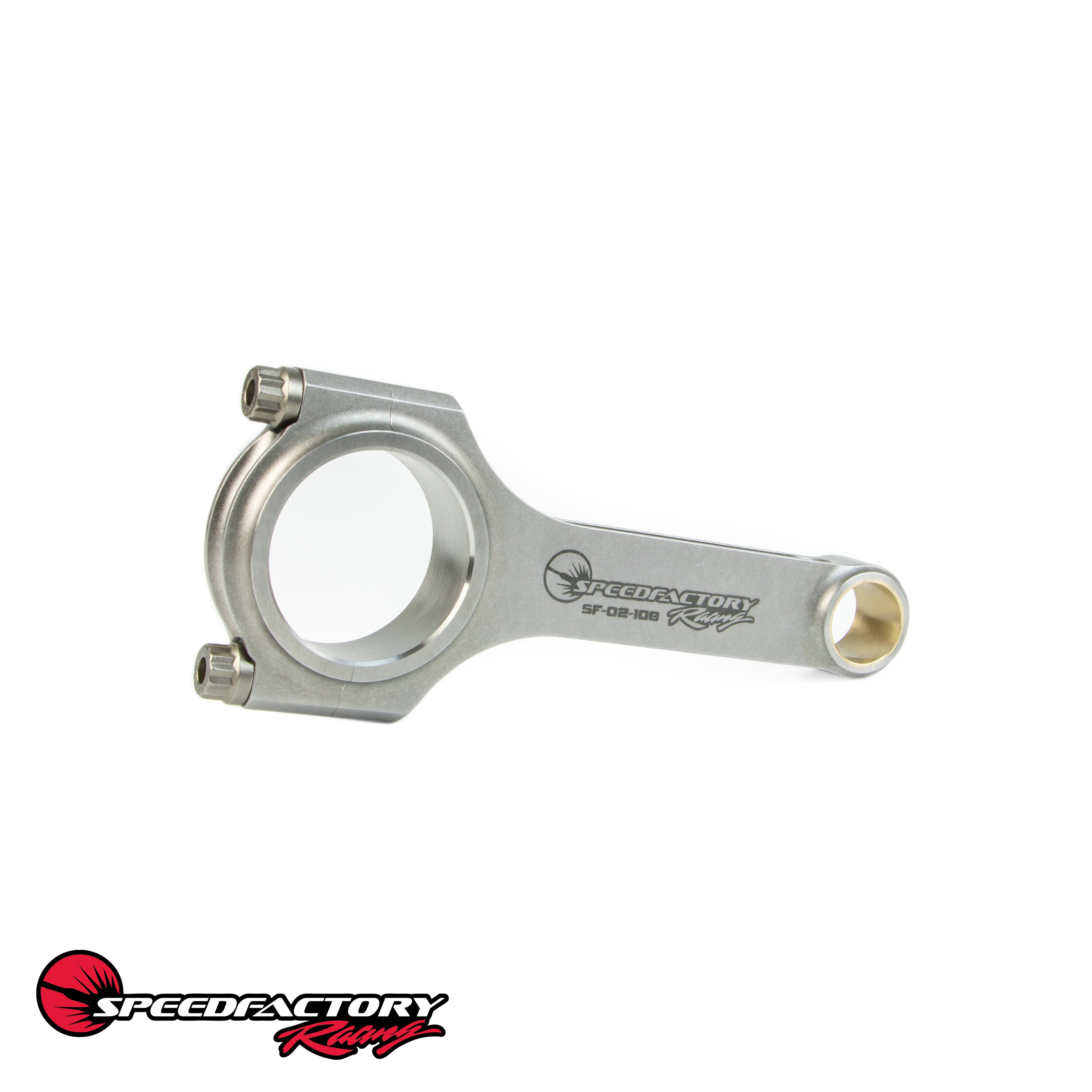

SpeedFactory Racing B16 Forged Steel H-Beam Connecting Rods
Couldn't load pickup availability

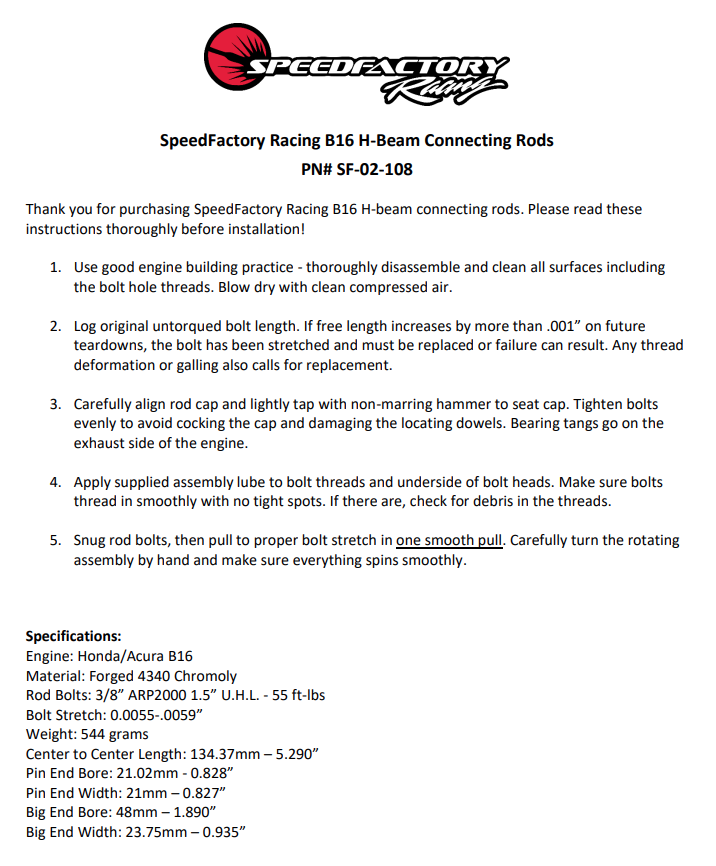

All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch
Ask an expert
SpeedFactory Racing B16 Forged Steel H-Beam Connecting Rods
These rods are ideally suited to B-Series engine builds to the 900+HP range and offer high strength and quality at an affordable price. Our design is strong enough for almost any B16 build.
The 2-piece forged 4340 chromoly construction provides outstanding strength and quality. Each rod is heat-treated, magnafluxed, CNC machined, and shot-peened to stress-relieve the metal. The rods have precision alignment dowels to positively locate the rod cap, maintain big end bore size, and eliminate cap walk. They feature bronze alloy pin bushings for floating wrist pins and come standard with 220,000 psi rated 3/8” ARP2000 rod bolts. Instructions and ARP Lube are included.
Features:
- Forged SAE 4340 Chromoly Steel
- 100% CNC machined
- Precision rod cap alignment dowels
- Bronze alloy pin bushings w/dual offset oiling holes for superior lubrication
- Pin end fits most aftermarket pistons w/out additional machining
- Not compatible with OEM style pistons
- Magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Each set balanced to +/- 1 gram
- Laser etched SFR logo
- 900+hp rated
Specifications:
Engine: Honda/Acura B16
Material: Forged 4340 Chromoly
Bolts: 3/8” ARP2000
Weight: 544 grams
Center to Center Length: 134.37mm – 5.290”
Pin End Bore: 21.02mm - 0.828”
Pin End Width: 21mm – 0.827”
Big End Bore: 48mm – 1.890”
Big End Width: 23.75mm – 0.935”
