SpeedFactory Racing 4140 Head Stud Kit for Honda D-Series (All)
We are proud to introduce our new D-Series Head Stud Kit that fits all variants!
No more having to mix and match fasteners for various block and head combos - our unique stud design fits all of them. Any combination of D15 or D16 block or head, non-VTEC or VTEC, D16Z6 or D16Y8 heads or blocks, etc.
The SpeedFactory Racing 4140 Head Stud Kit is great for most forced induction applications up to 600+HP and includes oversized forged nuts & washers for superior load distribution. This stud kit has been real-world tested to 750whp in an o-ringed & sleeved block with no issues.
A hex broach is incorporated on the top of the stud for ease of installation and a dog point end seats the stud in the block and preloads the fastener for consistent & accurate torqueing.
- 200,000 psi tensile rating, 10mm diameter

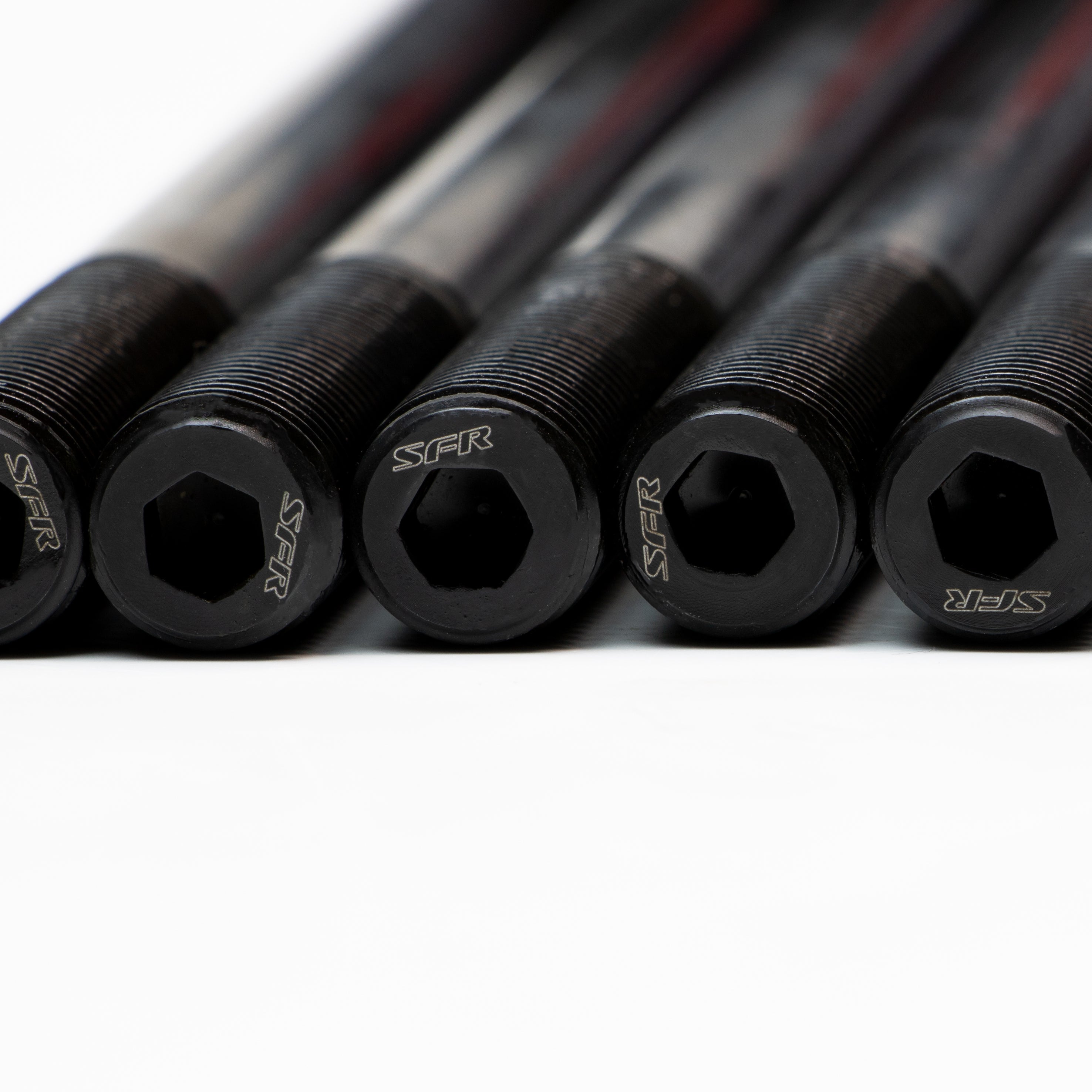

- 5/32" Hex broach on the top of the stud for ease of installation
- Dog point design for superior preload

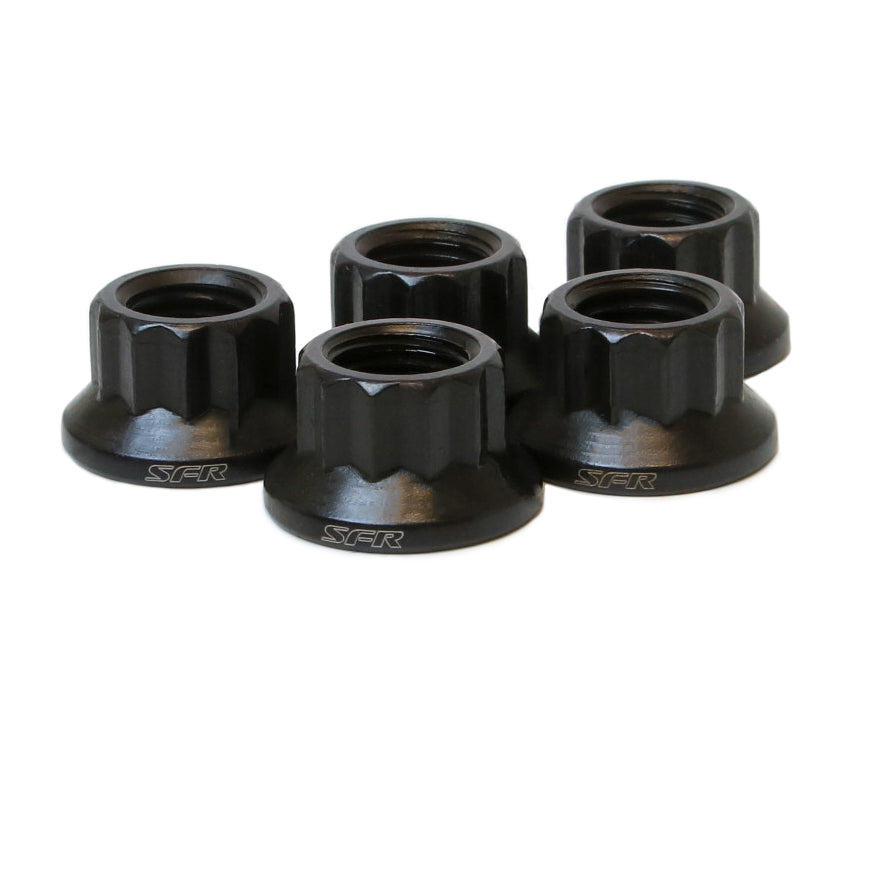

- Oversized forged 13mm 12-point nuts and hardened parallel ground washers for superior load distribution compared to the smaller 12mm nuts and washers most use
- Direct drop-in replacement for OEM head bolts.
- Corrosion-resistant black oxide coating

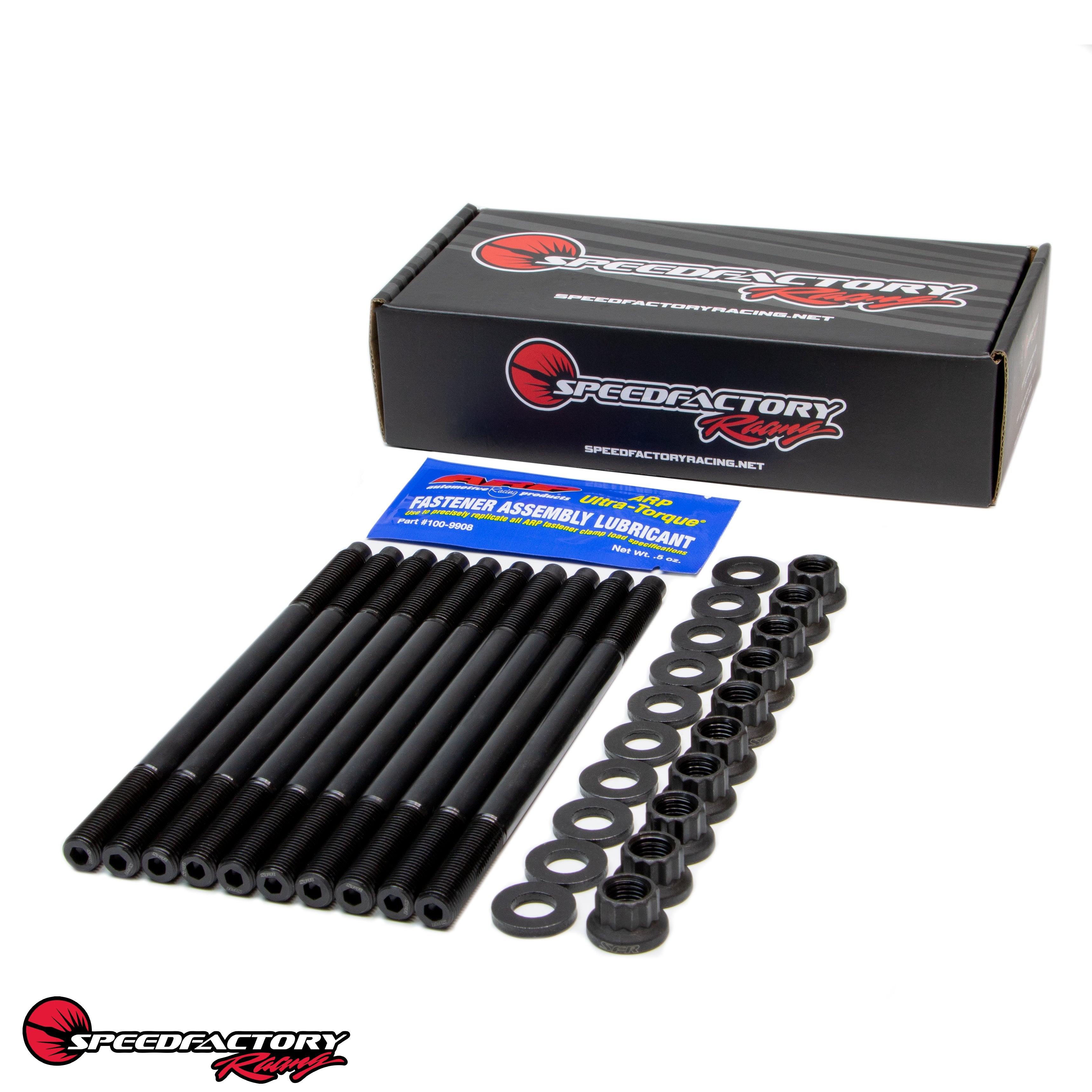

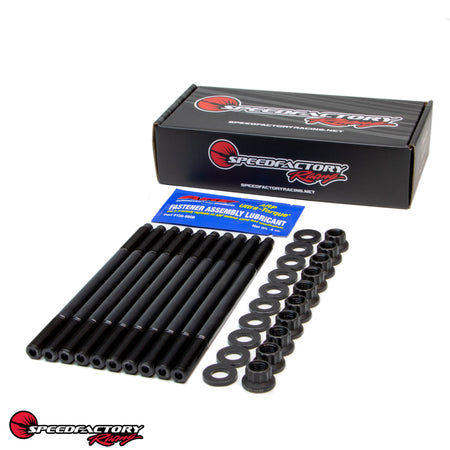

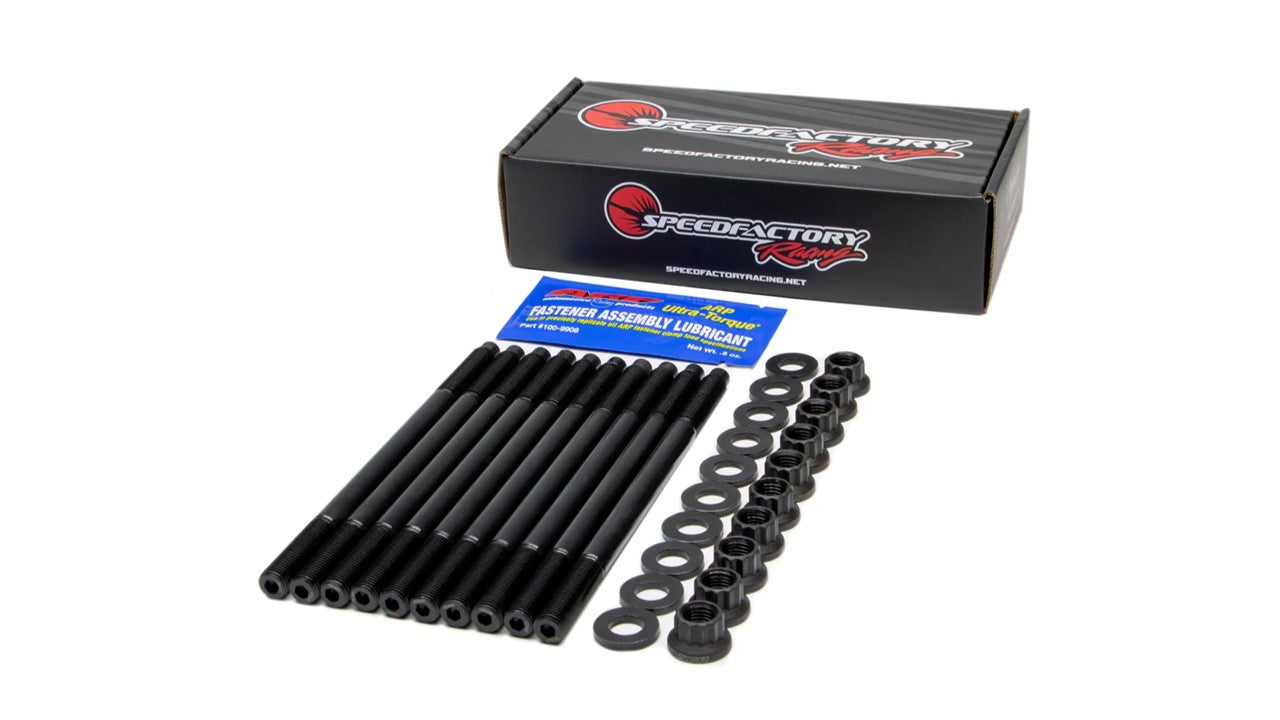

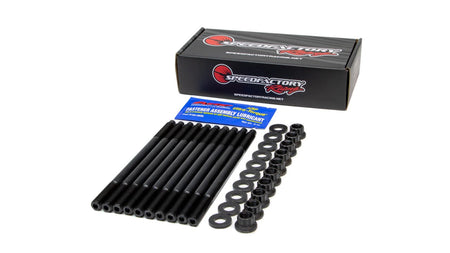

- Each kit includes a complete set of x10pcs 4140 head studs, nuts, washers and ARP Ultra-Torque Assembly Lubricant.
-
Fitments:
All D Series
1.5L SOHC (D15B1/D15B2/D15B6/D15B7/D15B8)1.6L SOHC (D16A6/D16Z6/D16Y5/D16Y7/D16Y8)
1.7L SOHC (D17A1/D17A2)"Mini-Me" builds (D16Z6 or Y8 VTEC head on D15/D16 Non-VTEC block)
