SpeedFactory Racing High Performance MLSS-HP Head Gaskets for Honda/Acura B-Series VTEC Engines
Couldn't load pickup availability
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch
Ask an expert

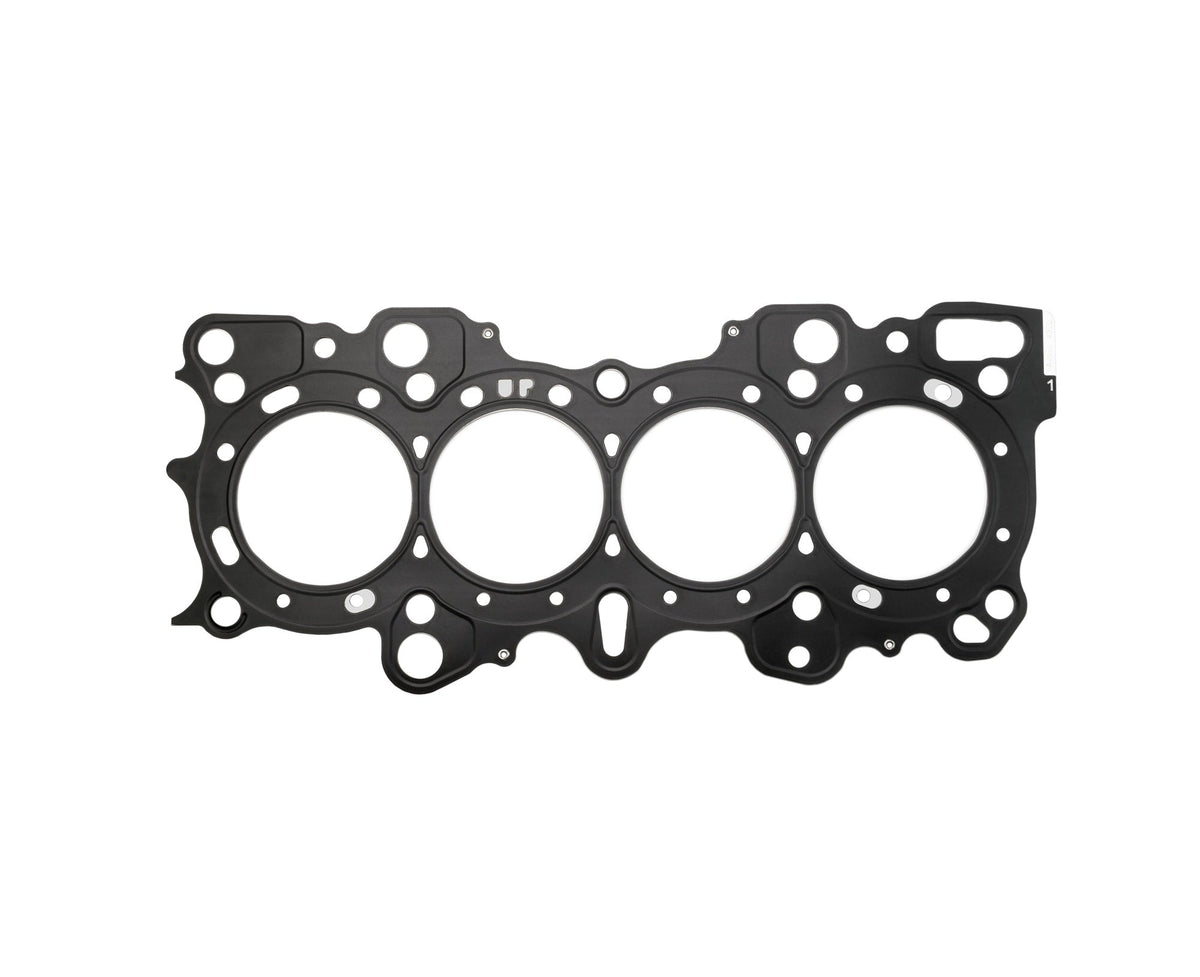

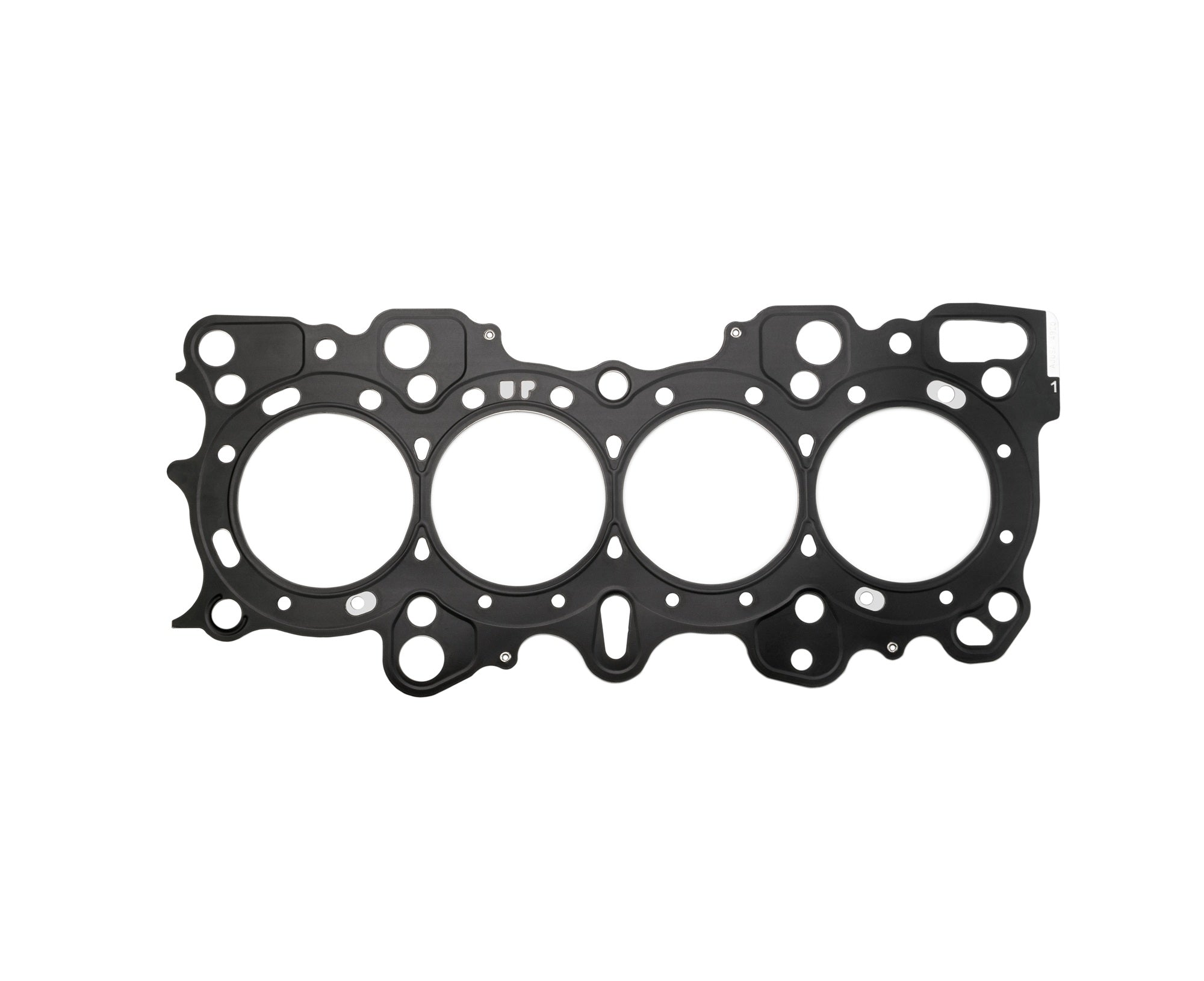

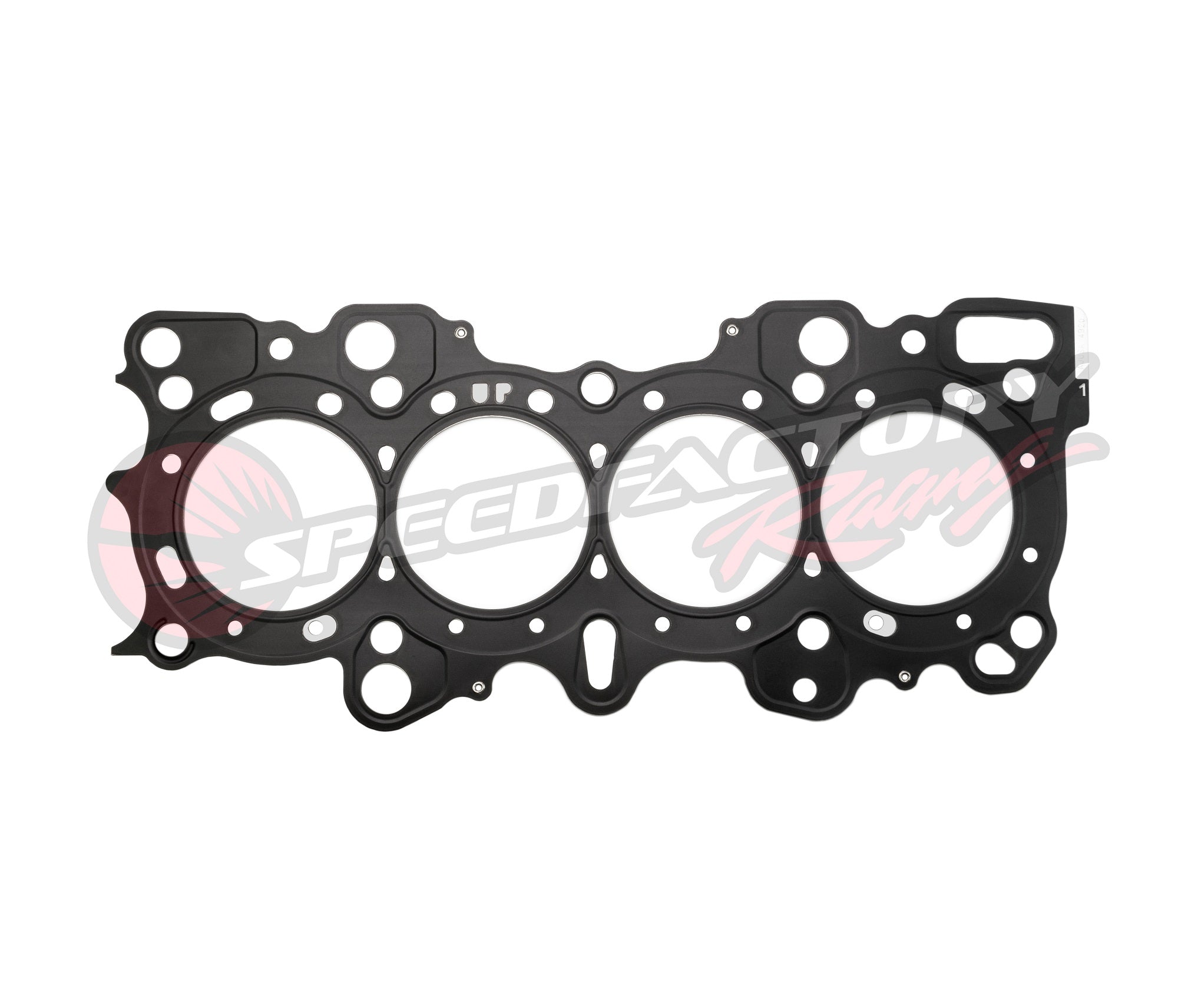

SpeedFactory High Performance MLSS-HP Head Gaskets for Honda/Acura B-Series VTEC Engines, Including LS-VTEC & B20-VTEC
PAIR WITH OUR SPEEDFACTORY RACING 4140 HEAD STUD KIT FOR THE ULTIMATE SEALING COMBO - CLICK HERE!
These MLS gaskets have been purpose-built to provide an excellent seal on high compression / nitrous / turbocharged engines, and when used in combination with our Extreme Duty L19 Head Stud Kit have been real world tested to 1000hp with excellent results.

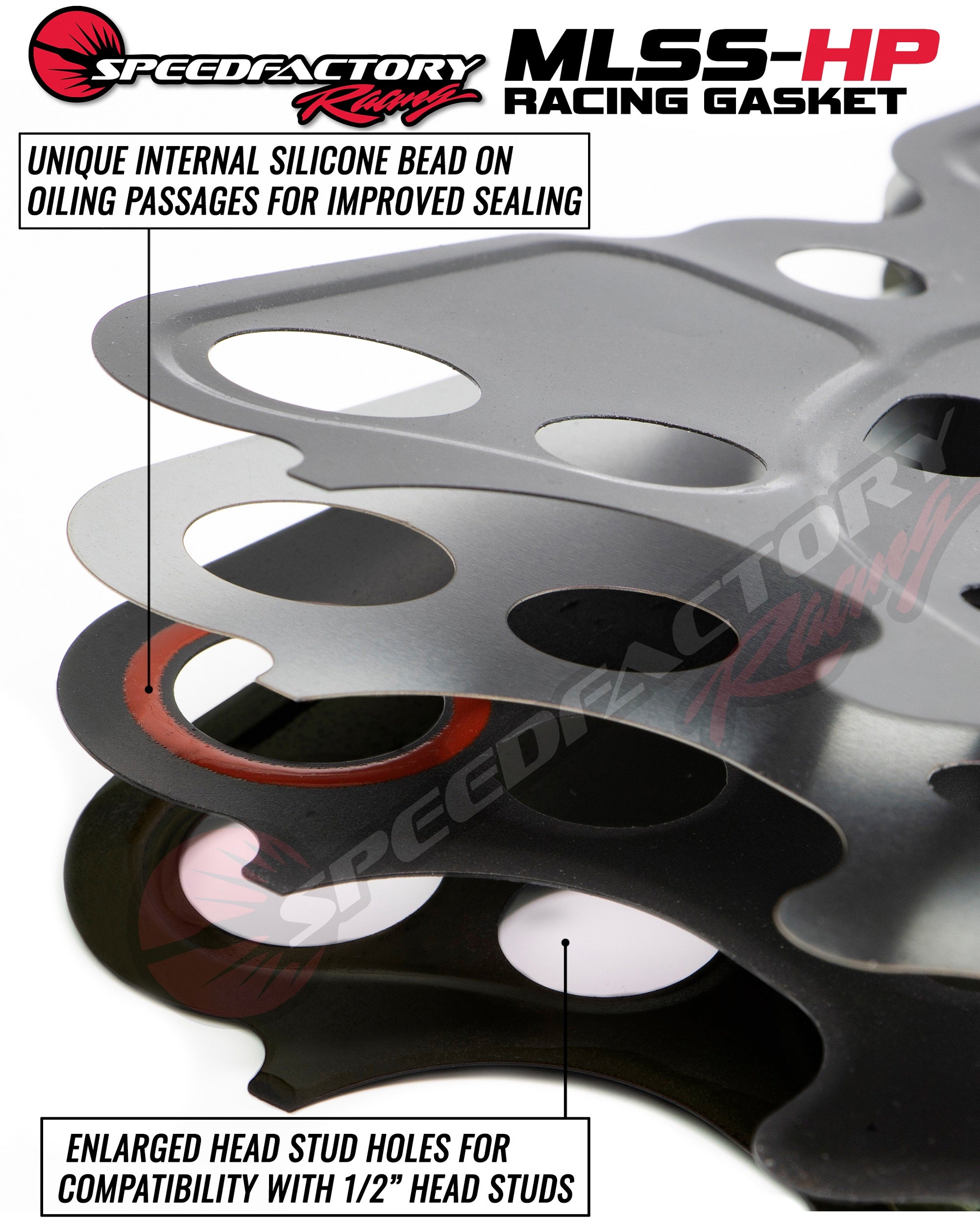

Our gasket utilizes a 4-layer design with specialized embossments that increase active combustion sealing height, ideal for high output engines that experience high levels of head lift/movement. The 0.040” thickness makes up for cylinder head and block surfacing vs the OEM 0.028” thickness and we've also incorporated a unique internal silicone bead on the oiling passages for improved sealing.
Another unique feature is enlarged head stud holes for compatibility with 1/2” head studs (the 2 locating dowel holes remain OEM sized and are the only holes that need to be modified if running 1/2" head studs, greatly reducing the time & effort required during engine assembly). We have been reliably running these gaskets on wet deck Bullet Billet blocks which utilize 1/2" head studs at 1400+whp.
**B20-Vtec requires 84mm or Larger Head Gasket
FITMENT:
Honda/Acura B16A B18C VTEC engines
LS-VTEC & B20-VTEC **Must Use VTEC Conversion Stepped Dowel Pins
Available Sizes:
- 81.50mm (Use for 81.00-81.75mm/3.218” maximum bore)
- 82.00mm (Use for 82.00-82.25mm/3.238” maximum bore)
- 83.00mm (Use for 83.00-83.25mm/3.277” maximum bore)
- 84.00mm (Use for 84.00-84.25mm/3.316” maximum bore)
- 84.50mm (Use for 84.50-84.75mm/3.336” maximum bore)
- 85.00mm (Use for 85.00-85.25mm/3.356” maximum bore)
- 0.040”/1.016mm thickness
FEATURES:
- MLSS-HP (Multiple Layer Stainless Steel + Silicone Bead) Head Gasket optimized for high performance use
- 4-layer MLS design with specialized embossment increases active combustion sealing height, ideal for forced induction engines that experience high levels of head lift/movement.
- Unique internal silicone elastomeric sealing bead around oiling passages for improved fluid sealing.
- High performance elastomeric coating to ensure the best possible seal by compensating for surface irregularities.
- 1/2" head stud compatible.
- OE quality, OE certified manufacturer (ISO 9001, ISO/TS16949, ISO 14001 certified).
- Note: This is a non-stopper ring type design.
